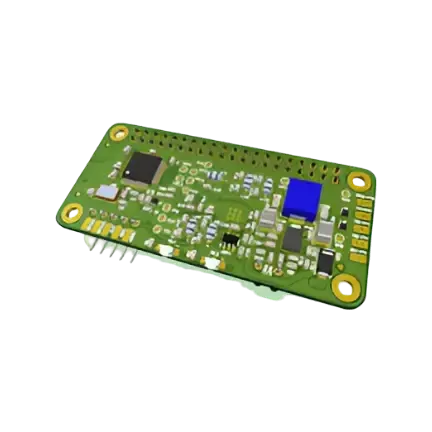

CBPH module

Clean, “unblurred” picture for the operator without delay. The module is designed to perform auxiliary functions as part of devices built on the basis of a single-board PC such as Raspberry Pi Zero. The module is attached directly to a Raspberry Pi Zero type PC and contains an auxiliary microcontroller such as STM32F103C8T6 with UART/GPIO/LED interfaces, an analog camera signal digitizer such as ADV7280A-M with a Raspberry Pi Zero camera interface, and a step-down voltage converter compatible with 4S-6S type battery packs. The module can be equipped only with an analog camera signal digitizer and a step-down voltage converter and perform the function of a digitizer. For the digitization task, a corrected driver for OS Linux is available upon request. The main advantage of using ADV728x is that the video quality and delay are at the level of working with an analog stream without digitization. There are a number of dependencies for ADV728x to work properly: 1. Operation with raspberry-pi-zero-2-w 2. Linux Kernel version 6.1.21 3. Integration of our driver into the Linux image, which ensures correct operation of the digitizer. 4. Reading and outputting the video stream with specialized software (or integrating the code of this software into the customer’s code).
