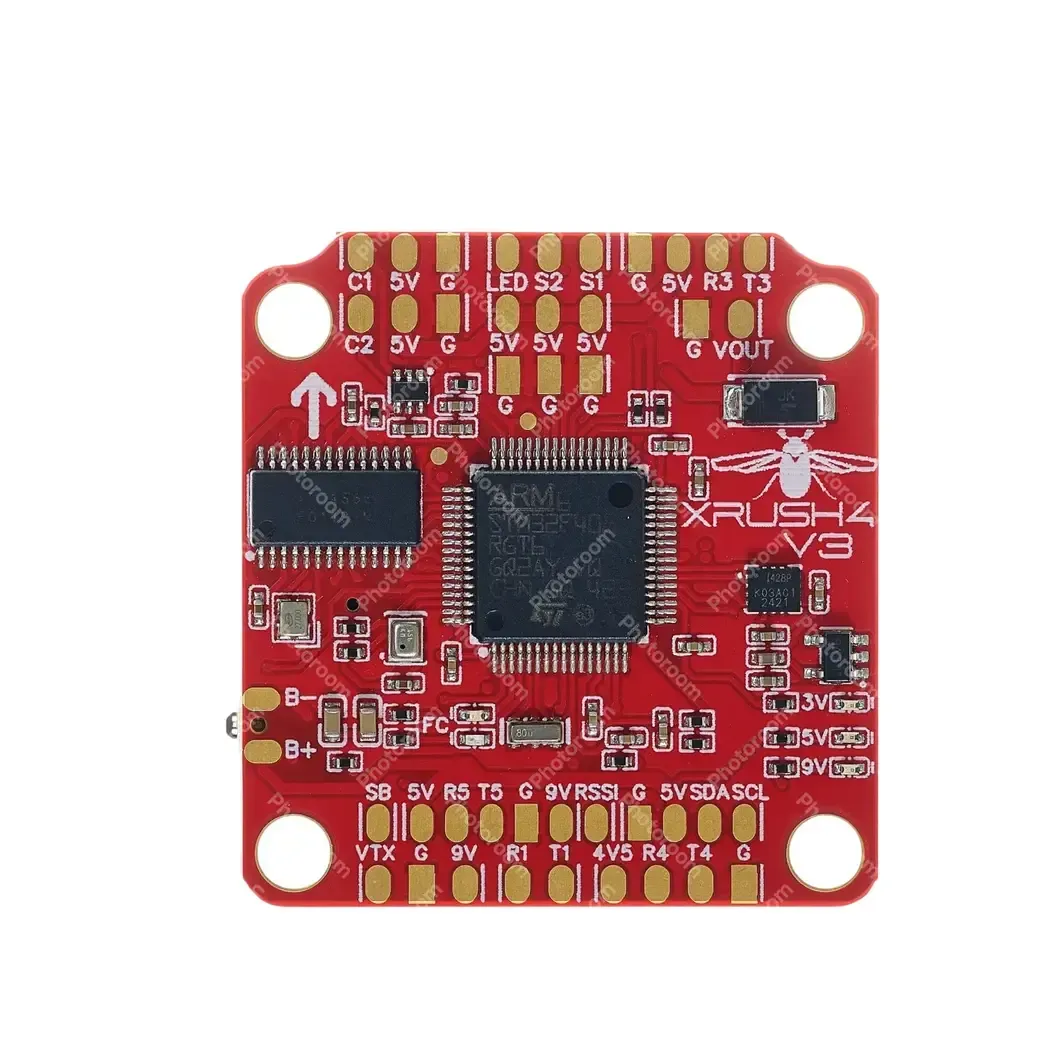

Flight stack XRUSH4 F4V3 “KHRUSHCH”
58,70 €
Flight stack Khrushch F4V3 65 A – Ukrainian development and fully manufactured in Ukraine. We did not copy existing controllers, but created our own reliable design. The main purpose is 7-12 inch drones with 6S power supply. Features: Processor: STM32F405 Gyroscope: ICM 42688 Barometer: DPS368 OSD chip: AT7456 Built-in 16 MB flash memory chip (Recognized as a flash drive) High-efficiency DC-DC voltage converters based on Texas Instruments chip, which provide the stated characteristics and do not cause heating of the board and processor. Output 5V: current 2A (3A short-term) Output 9V: current 2A (3A short-term) Separate linear voltage converter for gyroscope and processor with 3.3V filter. Built-in switch for two video cameras C1, C2 UART ports: UART1, UART2 (ESC telemetry), UART3, UART4, UART5 (DJI Air Unit) SBUS protocol UART1 RX1 I2C 1 pc Available firmwares: Betaflight, Milbeta, Ardupilot, Servo output: 2 ports S1 and S2 ADC 3x (Vbat, Current, RSSI) Connectors USB Type-C, DJI Air Unit, Telemetry ESC SBUS protocol UART1 RX1 Dimensions: 37×39×8mm Weight 9 grams
