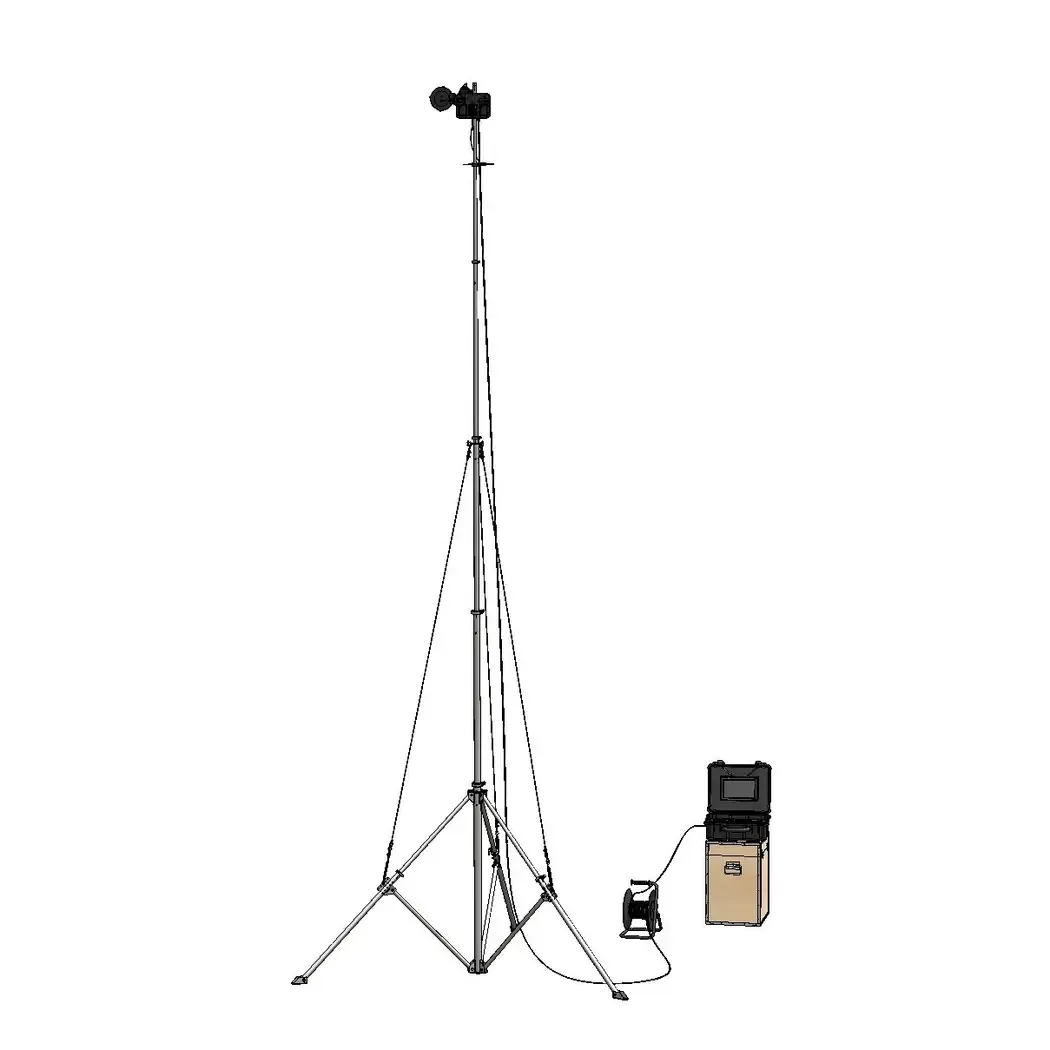

GS-2 Ground control and FPV station

UAV Ground Control Station “GS-1” is designed for FPV-type UAV control, namely take-off, piloting, and landing of UAVs. Depending on the type of UAV and the tasks performed, it can be used both as the main means of UAV control and as part of other control means. The design of the Ground Station allows it to be used indoors and outdoors in weather conditions that correspond to the operational characteristics of the Ground Station. The control line is duplex: the Ground Station ensures the transmission of UAV control signals via a radio channel at the appropriate frequency and the reception of telemetry signals, video from the UAV camera in conditions of direct radio visibility. UAV control involves manual control using a UAV control panel directly connected to the ground station case. Receiving a video image from the FPV video camera is provided by a receiver that is part of the Ground Station. Output of video information received from the UAV video camera is possible simultaneously on the built-in display of the ground station case and on the pilot’s goggles connected to the corresponding connector of the Ground Station case. Additionally, there is a possibility of broadcasting the received video information from the UAV video camera in on-line mode to external internet platforms (Zoom, Skype, and similar). Ground Station application options The Ground Station can be used in the following options: – active mode – ground station transmitters and receivers are turned on. Full UAV control is ensured at all stages of flight; – passive mode – ground station transmitters are off (deactivated), the ground station receiver is on. Reception of video signals from the UAV from the radio air on a correspondingly tuned frequency is ensured for the purpose of video recording or further broadcasting of video information to third-party platforms. The ground station is supplied in a partially disassembled state. After assembly and connection of the Ground Station components, it is fully ready for operation. The Ground Station has the following components: – external antenna unit; – reel with communication cable; – ground station case with monitor; – charger; – packaging. The price is indicated for the basic set of the ground station. Additional components (transmitters, receivers, antennas, mast, additional equipment) are agreed upon at the order formation stage and are added to the cost of the basic set of the Ground Station as additional equipment.
