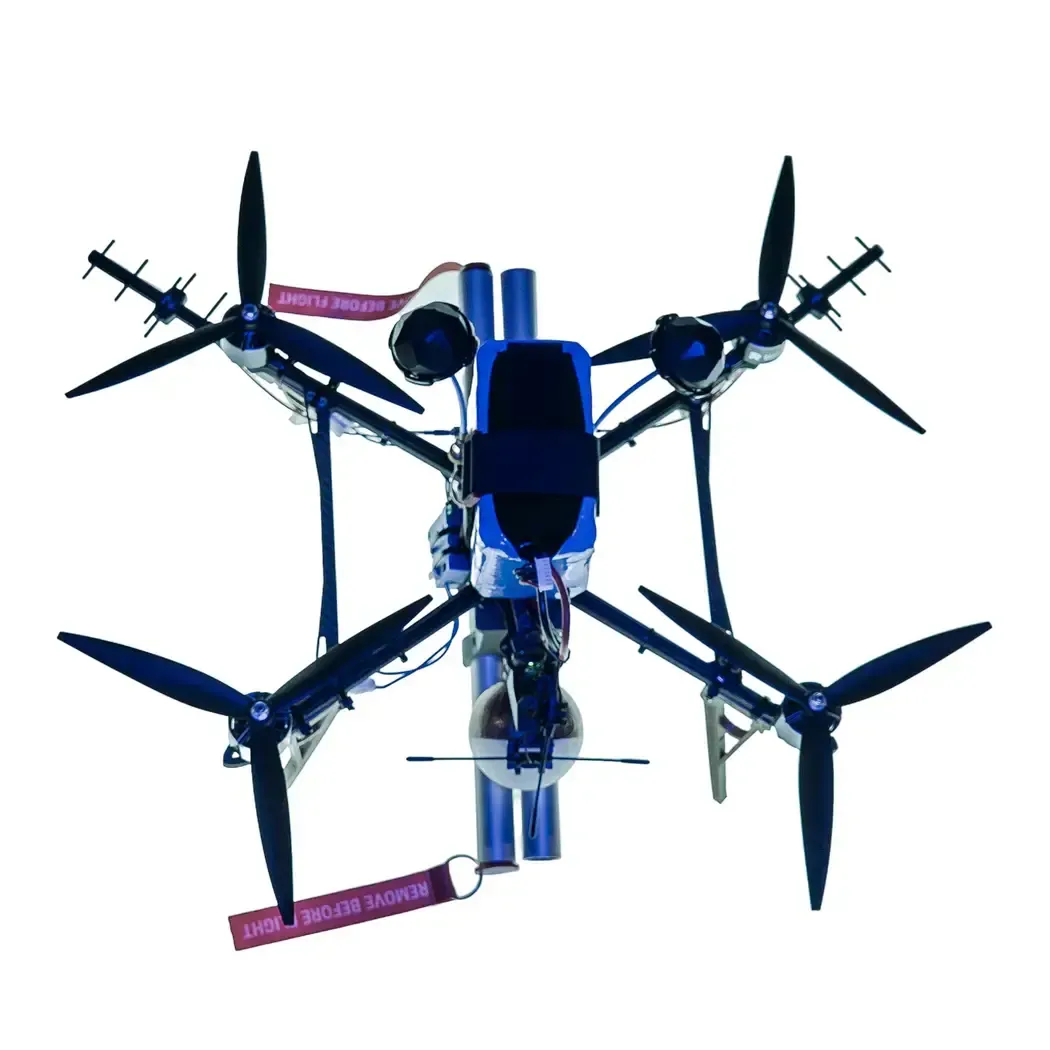

Impulse UAV

The Impulse UAV can be used by units of the Armed Forces of Ukraine to destroy tactical UAVs such as DJI Mavic, Matrice, etc. at an altitude of up to 2000 m, in normal meteorological conditions, at target speeds of up to 80 km/h, by hitting enemy UAVs with a shot from a board recoilless firearm module at a distance of up to 10 m. Targeting from a distance of 2000 m to the distance at which visual identification of the target UAV is possible is carried out using an onboard direction finder, which determines the direction to the radiation source at a frequency of 2.4 GHz and the level of its signal in dBm, which is displayed on the Impulse UAV operator’s screen. The operating frequency range of the direction finder can be configured from the Radiomaster TX 16 control equipment during flight, with a step of 10 MHz in the range 2400 MHz – 2460 MHz.
