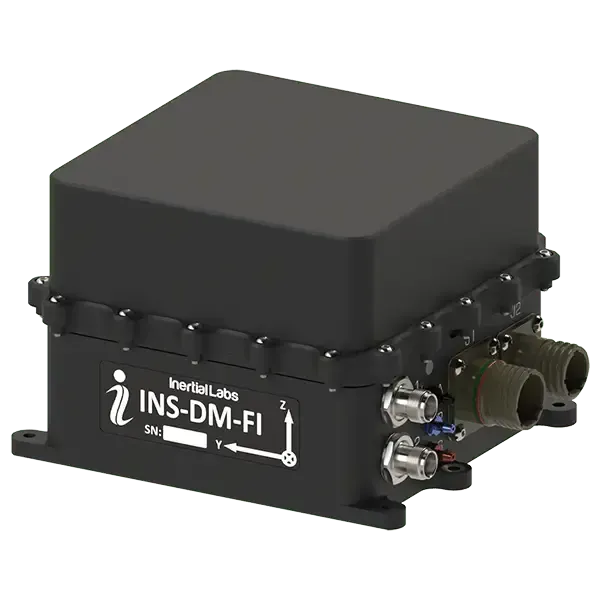

INS-DM-FI Inertial navigation system with GPS support

Inertial navigation system with GPS support INS-DM-FI – is the latest inertial navigation system (INS) developed by Inertial Labs using tactical-grade fiber-optic gyroscope technology. INS-DM-FI is the result of more than 20 years of experience in developing and supplying INS solutions for ground, marine and air platforms worldwide. This system, INS-DM-FI, is a new generation version of a super-strong, electromagnetically and electromagnetically protected, fully integrated, combined INS + AHRS + MRU + FOG system based on IMU (AHRS) with a high-performance positioning and heading reference system (FOG) and an optional built-in air data computer (ADC). It determines position, velocity, vertical and horizontal displacement, and absolute orientation (heading, pitch, and roll) for any device on which it is installed. Horizontal and vertical position, velocity, and orientation are determined with high accuracy for both stationary and dynamic applications. Inertial Labs INS-DM-FI contains inertial measurement units (IMUs) using tactical-grade fiber-optic gyroscopes and MEMS accelerometers. INS-DM-FI also uses embedded multi-constellation GNSS receivers (GPS, GLONASS, GALILEO, QZSS, and BEIDOU), such as NovAtel OEM7 series, u-blox F9 or Septentrio mosaicH series. The INS-DM-FI design also includes an optional built-in air data computer (ADC) supported by two barometers, and the ability to support an external autonomous magnetic compass (SAMC).
